Drum

Home > Product > Drum

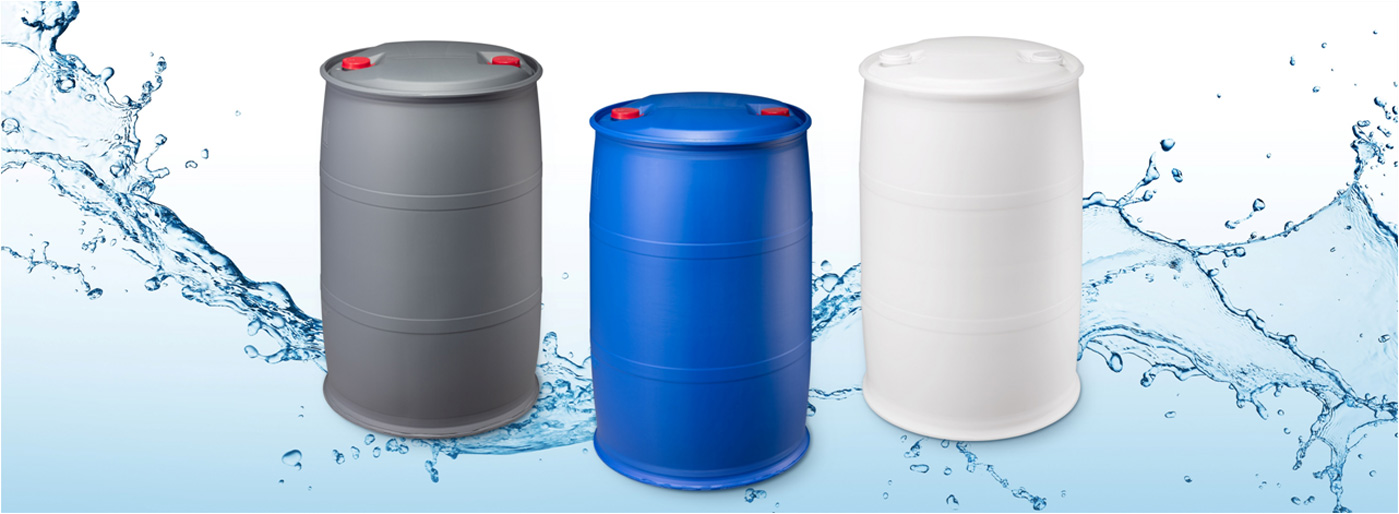

For the past 20 years, Hwajin Co., Ltd. has been successfully supplying the highest quality drums to the semiconductors, displays, and secondary batteries industries.

Made of high-density polyethylene (HDPE), our product is safe for chemicals such as strong acids and alkalis. Our clean drums are produced under strict cleanliness control following a high-purity CLEAN process with a class 1,000 level.

Ultra Clean Drum

The Ultra Clean Drum (UD-200L), which corresponds to the high and middle Grades, has a 3-layer structure and uses additive-free resin for the inner layer that is in direct contact with the storage material to minimize the increase in particles and metal.

Spec

  • Volume : 200L
  • Color : Blue, Gray, Natural
  • Weight : 11±0.2kg, 13.5±0.2kg
  • Standard dimensions : 585±5mm X 920±5mm (W X H)
  • Thickness : Min 3.5mm
  • Packaging unit : 8EA/Pallet
  • Inlet diameter : 53.5±0.5mm (H type), 65.4±0.5mm (M type)

  • UN standard : 1H1/Y1.8/200/Year/ROK/KOMDI
    1H1/X1.5/250/Year/ROK/KOMDI

Applications(Semiconductors, Displays, and Secondary Batteries)

  • CMP Slurry

  • High purity hydrogen peroxide

  • High purity phosphoric acid

  • Acids

  • Alkalis

  • Etchants

  • Strippers

  • Detergents

  • Developers

  • Other electronic materials

Clean Drum

The Clean Drum (CD-220L), which corresponds to the low grade, has a mono-layer structure.

Spec

  • Volume : 200L
  • Color : Blue, Gray, Natural
  • Weight : 11±0.2kg
  • Standard dimensions : 585±5mm X 920±5mm (W X H)
  • Thickness : Min 3mm
  • Packaging unit : 8EA/Pallet
  • Inlet diameter : 53.5±0.5mm (H type)

  • UN standard : 1H1/Y1.8/200/Year/ROK/KOMDI
    1H1/X1.5/250/Year/ROK/KOMDI

Applications(Semiconductors, Displays, and Secondary Batteries)

  • CMP Slurry

  • Acids

  • Alkalis

  • Etchants

  • Strippers

  • Detergents

  • Other electronic materials

UD and CD Comparison

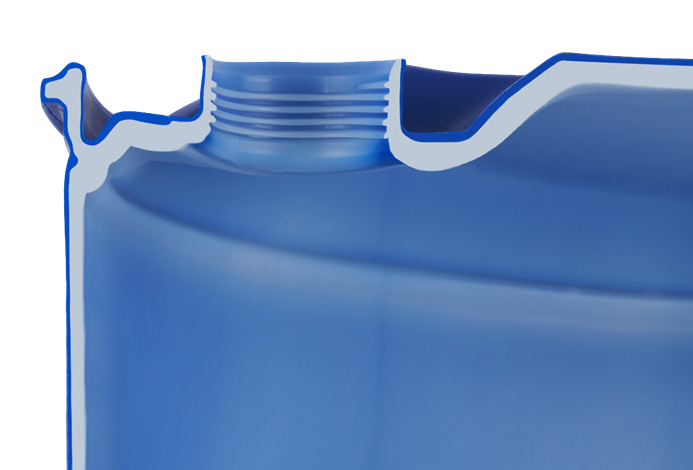

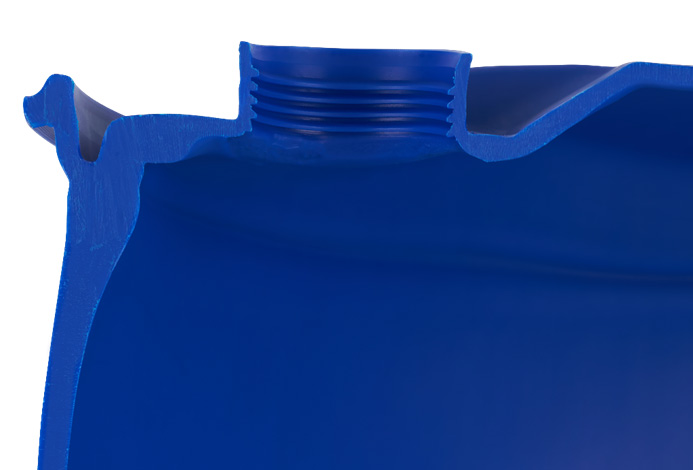

Section Comparison

UD-200L(3-Layer)
CD-220L(Mono-Layer)

Particle Guarantee Comparison

UD-200L(3-Layer) CD-220L(Mono-Layer)
Size(um) Spec Size(um) Spec
0.2 Less than 10ea/ml 0.3 Less than 10ea/ml
0.3 Less than 5ea/ml 0.5 Less than 5ea/ml

Reefer Container Drum

Spec

  • Volume : 200L
  • Color : Blue
  • Weight : 11±0.2kg
  • Standard dimensions : 570±5mm × 980±5mm(W × H)
  • Thickness : Min 3mm
  • Packaging unit : 8EA/Pallet
  • Inlet diameter : 65.4±0.5mm (M type)
  • UN standard : 1H1/Y1.8/200/Year/ROK/KOMDI

Particle Guarantee

RCD-220L
Size(um) Spec
0.3 Less than 10ea/ml
0.5 Less than 5ea/ml

Applications(Semiconductors, Displays, and Secondary Batteries)

  • CMP Slurry

  • Acids

  • Alkalis

  • Etchants

  • Strippers

  • Detergents

  • Other electronic materials

Chemical Drum

Spec

  • Volume : 200L
  • Color : Blue, Gray, Natural
  • Weight : 11±0.2kg
  • Standard dimensions : 585±5mm X 920±5mm (W X H)
  • Thickness : Min 3mm
  • Packaging unit : 8EA/Pallet
  • Inlet diameter : 53.5±0.5mm(H type), 65.4±0.5mm (M type)
  • UN standard : 1H1/Y1.8/200/Year/ROK/KOMDI

Application

  • PCB plating chemicals

  • Water-based paint additives

  • MEA (Monoethanolamine)

  • Waste fluid (Spent Liquor)

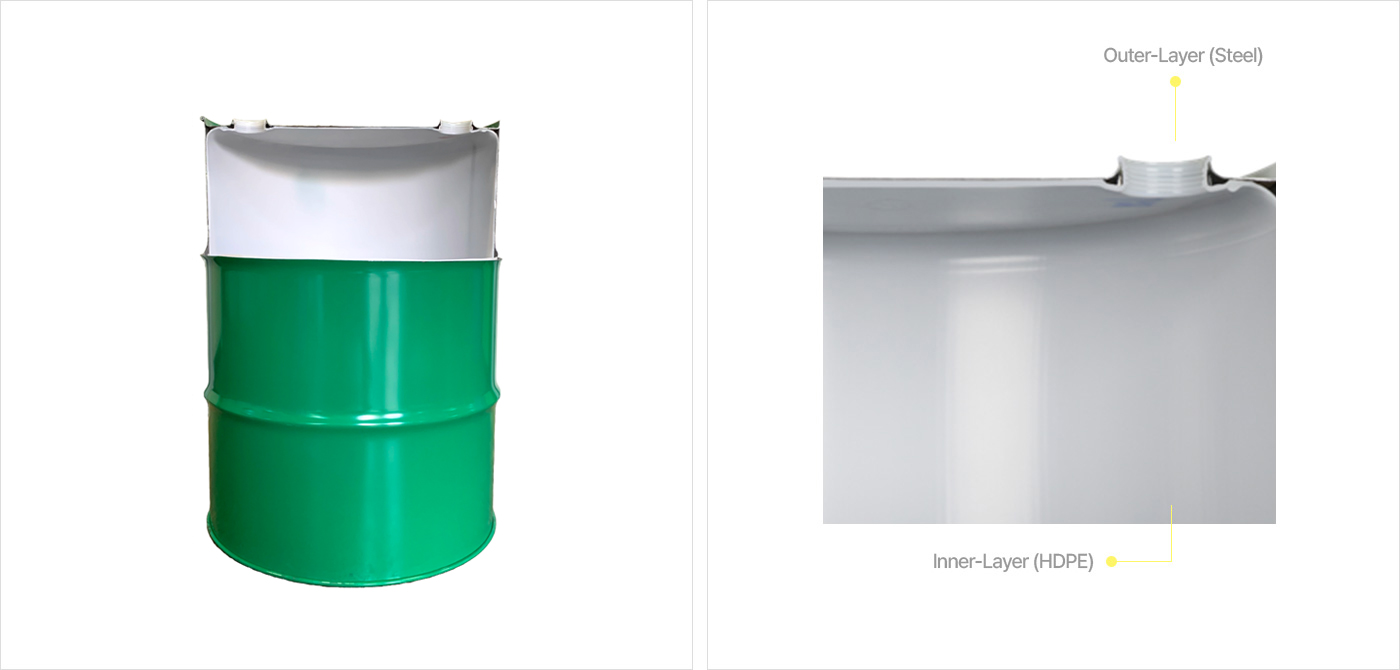

Composite Steel Drum

Spec

  • Volume : 200L
  • Color : Green
  • Weight : 25±0.2kg
  • Standard dimensions : 585±5mm X 890±5mm (W X H)
  • Thickness : Min 1.2mm(outer), Min 1mm(inner)
  • Packaging unit : 4EA/Pallet
  • Inlet diameter : 53.5±0.5mm (H type)
  • UN standard : 6HA1/X1.6/300/Year/ROK/KR

Application

  • Ammonium hydroxide solution
